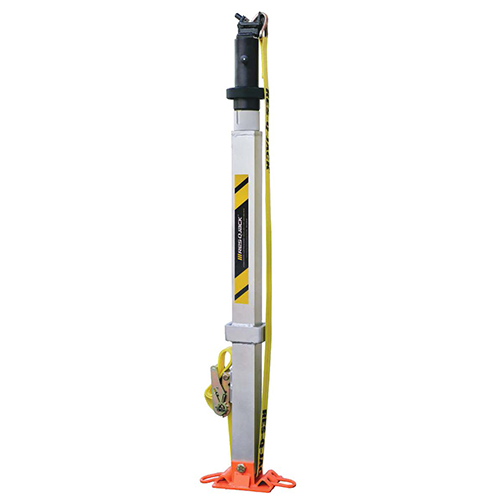

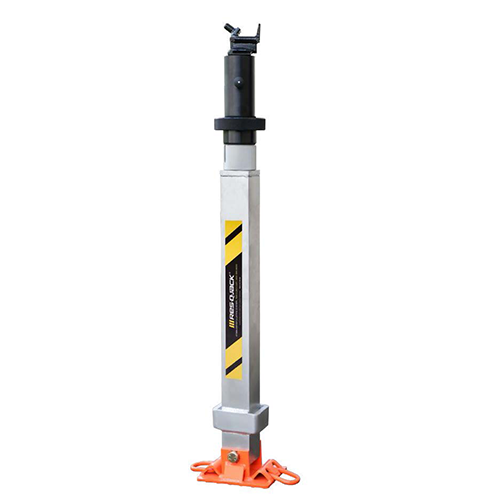

APEX-STRUT 4-Point Deluxe Kit

The new Apex X-Strut takes the popular design of our Auto X-Strut and beefs it up for even more capability. This well-rounded strut features the combination of a square aluminum outer tube, allowing for a ratchet on the standard size strut and an internal positive stop to eliminate the risk of over extension. Accepts up to 36” of extension on both the short and standard size strut.

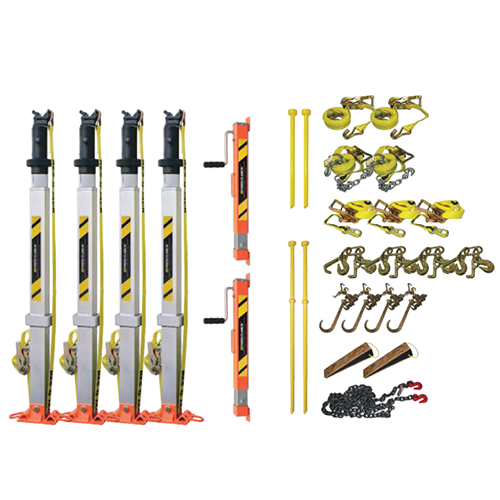

Kit Contents:

(4) Apex X-Struts (short or long)
(2) Apex X-Strut Add-On Jacks
(2) Ratchet Straps w/ Wire Hooks
(2)Ratchet Straps w/ Chains
(3)Ratchet Straps w/ Snaps
(4)Clusters
(4) 4’ Chains w/ 8” J, Grabs, Mini-J & T-Hook
(1)Grade 80 Chain w/ Grab Hooks
(2)Wood/Plastic Hybrid Wedges
(2) 20” long 1” Stakes w/ Heads
(2) 4’ long 1” Pickets w/ Collars

PIN-FREE, TWIST-FREE

Threaded inner tubing makes setup and operation fast and smooth, while allowing for infinitesimal height adjustment when stabilizing or lifting and lowering loads. The unique design includes a positive stop, eliminating the risk of overextension and strut rotation.

QUICK RELEASE HEADS

Change end fittings in an instant with the pull of a single retaining pin. Comes standard with our 360° swiveling head for precise placement on any purchase point.

COMPATIBLE HEADS & EXTENSIONS

Apex X-Strut head fittings are compatible with our Super X-Strut and Auto X-Strut fittings, as well as competitor head fittings, and accept up to 36” of extensions on both short and standard size struts.

X-STRUT LIFTING POWER

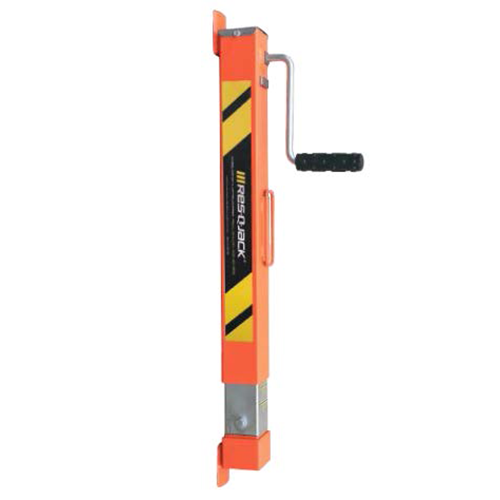

Transforms from a shoring strut to a lifting strut in seconds with our removable mechanical Add-On Jack, (pictured below) for 6,000lbs. (2:1) of on demand lifting capability with 12 inches of resettable travel.
