Rabbit P-572-S
Rabbit P-572-S

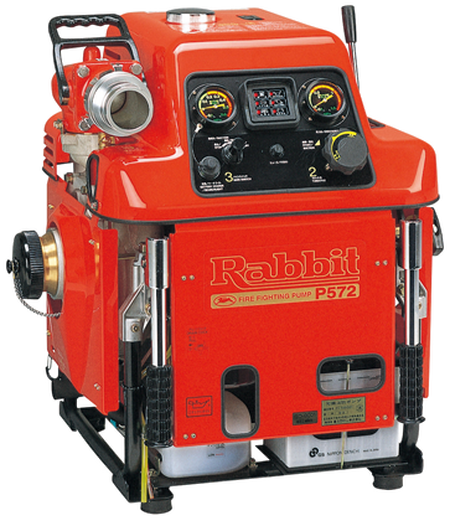

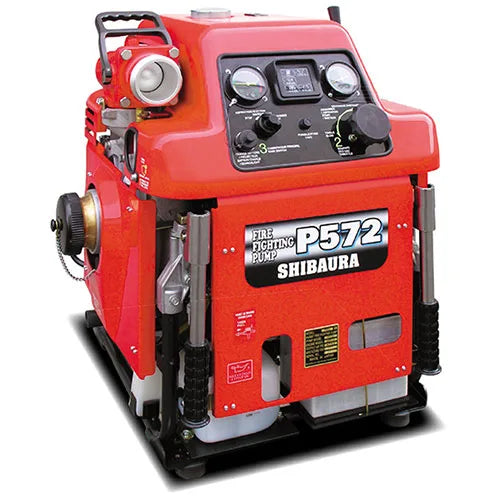

Portable Fire Pumps Rabbit P-572-S

Contact Us for Price & Availability

FEATURES

  • Shibaura Rabbit's originality! A completely new design allows for a one-touch removable outer cover. This enables quick and easy inspection and maintenance.
  • Use of a large oil-less vacuum pump ensures no wasted oil, and a coolant circulation system (optional) eliminates emission of water, achieving a consistently clean cooling solution.
  • For the first time in a firefighting pump, a revolutionary automatic decompression system has been added to the engine. This reduces recoil force and includes an automatic choke to ensure a simple and trouble-free start every time.
  • The new design incorporates a large oil-less vacuum pump and a high-power engine, allowing faster water suction and discharge, making it superior to any other competing brand in the same class.
  • Separate oil filling system eliminates the need for fuel mixing. If the lubrication oil becomes empty, a warning indicator will alert the operator, and the engine will automatically shut down.
  • The new design allows low-noise operation, achieved by using a high-performance silencer system on both the air intake and outlet. This minimizes noise disturbances during practice drills and nighttime operation.
  • In the unexpected event of the pump having insufficient coolant, the automatic shutdown system (RRS) will activate, and the engine will automatically shut down.
  • An improved design super ball cock valve offers excellent operating characteristics, while a stepless throttle dial delivers a smoother, fine discharge setting.

DIMENSIONS & WEIGHT

  • Dimensions (LxWxH): 657 x 584 x 720 mm
  • Dry Weight: 94 kg

PUMP

  • Model: SHIBAURA P572
  • Type: High pressure, single stage centrifugal pump
  • Discharge Performance:
  • Priming Performance (at 1m suction head): 2.1 seconds
  • Discharge Diameter (JIS): 65 mm
  • Suction Diameter (JIS): 75 mm

ENGINE

  • Model: SHIBAURA EP572
  • Type: Water-cooled, 2-stroke gasoline engine
  • Cooling System: Water-cooled type
  • Number of Cylinders: 2 cylinders
  • Fuel System: Auto choke carburetor
  • Displacement: 723cc
  • Bore x Stroke: 80 mm x 72 mm
  • Rated Output: 34.3kW / 46PS
  • Starting System: Electric starter & manual starter
  • Fuel Tank Capacity: 12.0L
  • Fuel Consumption: 17.5L/h
  • Fuel Type: Regular unleaded gasoline

VACUUM PUMP

  • Type: 4-Vane eccentric rotary type
  • Blade Type: High-strength carbon
  • Maximum Suction Height: 9m

FEATURES

  • Shibaura Original 2-Cycle Gasoline Engine: ✓
  • Shibaura Original Centrifugal Pump: ✓
  • Shibaura Original Vacuum Pump: ✓
  • Alert Monitoring System: ✓
  • Quick Discharge Valve: ✓

P572 WATER COOLED

This product features an engine Model EP572, Type: Water-cooled, 2-cycle, horizontal 2-cylinder gasoline engine, with Cylinder dimensions of 2-80mm x 72mm, and a pump type: single stage, high-pressure turbine pump.

Although offering higher performance, the P572 maintains the same weight as other models, which is 88kg.

MAX OUTPUT: 70HP / 52KW

The P572 series by Shibaura Rabbit reflects the company's success in providing high-quality engineered products, combined with the latest technological advancements in firefighting pumps. These new models are designed to deliver high performance, surpassing equivalent competing brands.
