SUPER VAC FANS (MILWAUKEE) - Supervac

SUPER VAC FANS (MILWAUKEE)

Call us for price & availability
Size

Contact us for price & availability

Reliable shipping

Flexible returns

Description

THE MOST VERSATILE BATTERY FAN

COMPATIBLE WITH MILWAUKEE® REDLITHIUM™ HIGH OUTPUT™ BATTERIES

Compatibility — system wide. Super Vac’s lineup of Milwaukee-battery powered fans includes our lightweight 16” variable-speed fan, our easy-to-maneuver 18” DeWalt battery fan and our all-new powerful 20" battery fan addition. This PPV is the perfect addition to your crew’s arsenal. Finally, the industry can turn to a ventilation fan with a trusted battery name that pairs with Super Vac’s dependable history.

Milwaukee Battery Features

Designed for Versatility

  1. Compact, Roll-Cage Aluminum Frame: Features one of the most compact, lightweight PPV designs.
  2. Curved Handle: Folds into the frame for compact storage; curved design provides higher grip for better ergonomics.

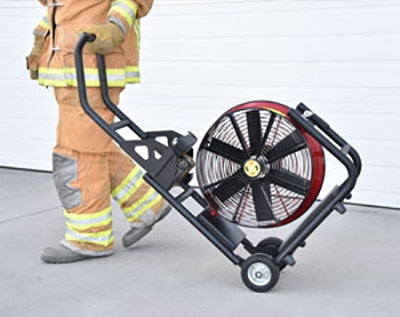

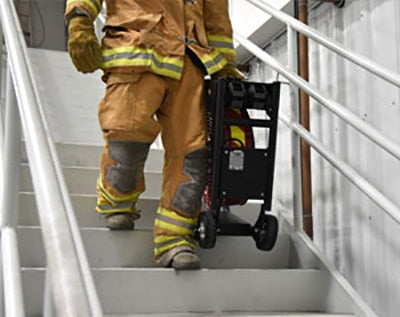

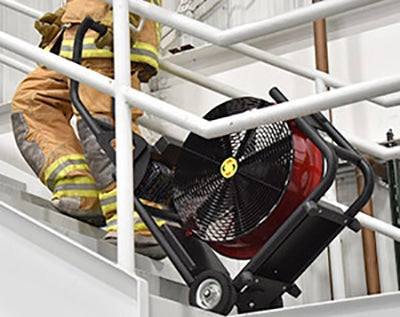

  3. Flat-Proof Rubber Tires with Skid Plates: Creates a highly maneuverable fan, even on stairs; easy for all firefighters to position.
  4. Polymer Blade: Minimizes weight; Super Vac's single-piece cast aluminum blade is available by request.
  5. Stream Shaper Guard: Allows flexible setback; Air Cone Guard is available by request.
  6. Standard Shore Power: 120-240V AC operation turns your Milwaukee cordless fan into an electric-powered fan for even more versatility. Note: Shore power does not charge batteries.

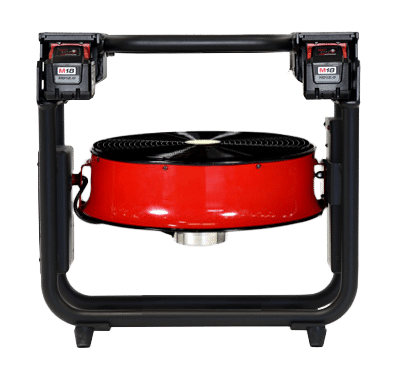

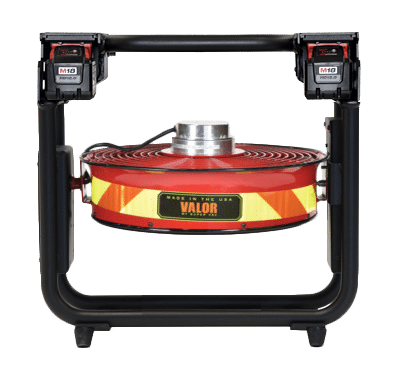

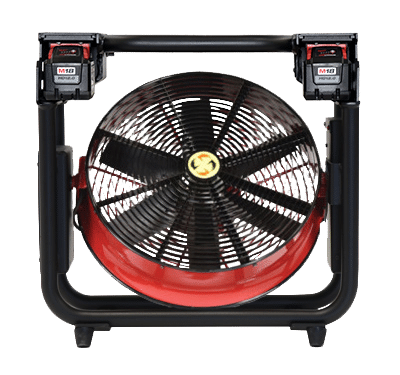

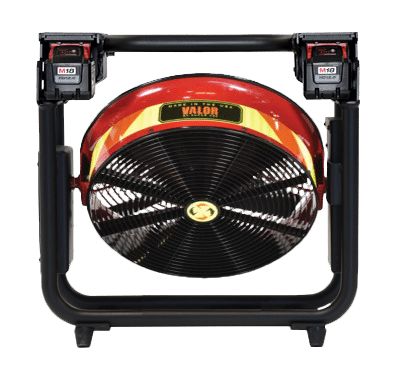

  7. 180-Degree Tilt: Provides the largest tilt range among battery fans, allowing airflow to be directed virtually anywhere.
  8. Milwaukee REDLITHIUM 18V HIGH OUTPUT Batteries: Provides up to 62 minutes of max airflow, depending on battery selection; 120-240V AC operation is standard (with optional delete).
  9. LED Light: Provides visibility for firefighters and assists seeing the fan in smoky conditions.

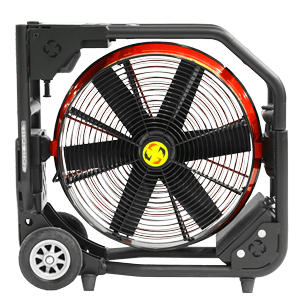

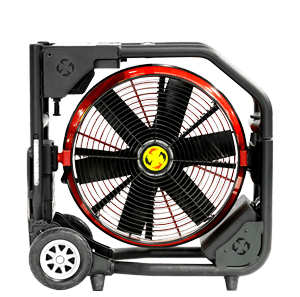

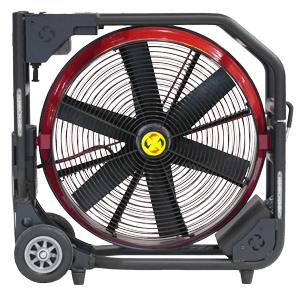

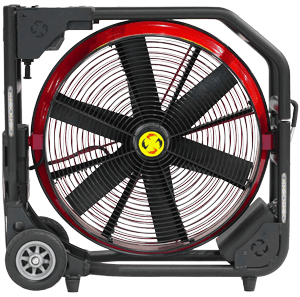

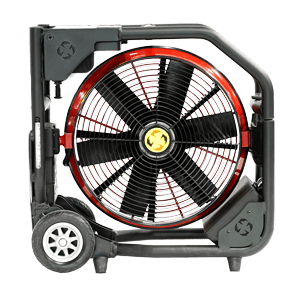

  10. Available in several sizes: 16in, 18in, 20in.

AMCA 240-22

Specifications
More informations

V16-BD-SP

  • Battery System: DeWalt® FLEXVOLT® 12Ah
  • Certified Airflow: 8,127 cfm (13,808 cmh)
  • AMCA RPM: 2,100 RPM
  • Setback/Angle: 15 ft (4.6 m) / 10°
  • Battery Runtime: 53 Minutes / 40 Minutes

V16-BL-SP

  • Battery System: Milwaukee® REDLITHIUM® HD 12.0
  • Certified Airflow: 7,721 cfm (13,118 cmh)
  • AMCA RPM: 2,216 RPM
  • Setback/Angle: 15 ft (4.6 m) / 10°
  • Battery Runtime: 46 Minutes

V18-BD-SP

  • Battery System: DeWalt® FLEXVOLT® 12Ah
  • Certified Airflow: 8,489 cfm (14,423 cmh)
  • AMCA RPM: 1,828 RPM
  • Setback/Angle: 15 ft (4.6 m) / 10°
  • Battery Runtime: 56 Minutes

V18-BL-SP

  • Battery System: Milwaukee® REDLITHIUM® HD 12.0
  • Certified Airflow: 8,946 cfm (15,200 cmh)
  • AMCA RPM: 1,889 RPM
  • Setback/Angle: 15 ft (4.6 m) / 10°
  • Battery Runtime: 53 Minutes

V20-BD-SP

  • Battery System: DeWalt® FLEXVOLT® 12Ah
  • Certified Airflow: 9,456 cfm (16,066 cmh)
  • AMCA RPM: 2,018 RPM
  • Setback/Angle: 15 ft (4.6 m) / 10°
  • Battery Runtime: 46 Minutes

V20-BL-SP

  • Battery System: Milwaukee® REDLITHIUM® HD 12.0
  • Certified Airflow: 9,867 cfm (16,764 cmh)
  • AMCA RPM: 2,059 RPM
  • Setback/Angle: 15 ft (4.6 m) / 10°
  • Battery Runtime: 62 Minutes / 50 Minutes
