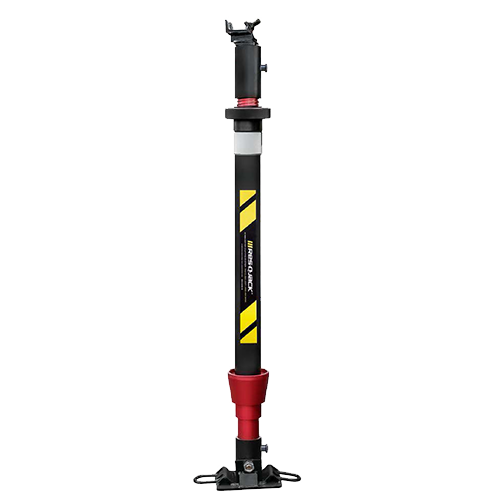

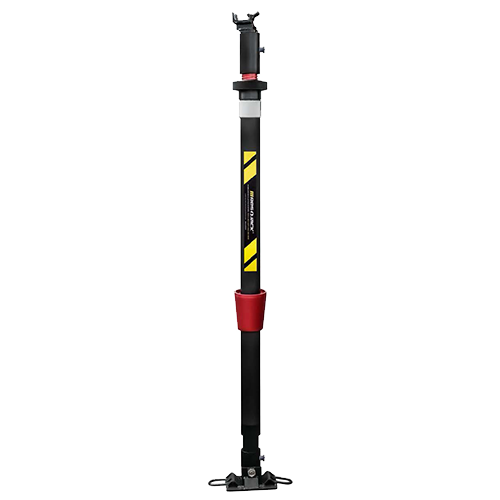

Featuring threaded collars in place of our standard pins, the Super X- Strut is our most intuitive and fastest-deploying strut. The Super X is not only effective for vehicle stabilization, lifting and extrication. It’s also rugged enough for structural collapse, trench, and mine rescue (see our Technical Kits & SPX Trench Shoring systems). The Super X comes standard with a hollow inner tube (red) for a lighter-weight strut, but it may also be purchased with a solid inner tube (black) for a higher working load. With the highest working load of all our struts, the Super X is ideal for heavy rescue, but can also quickly stabilize and lift a small vehicle.

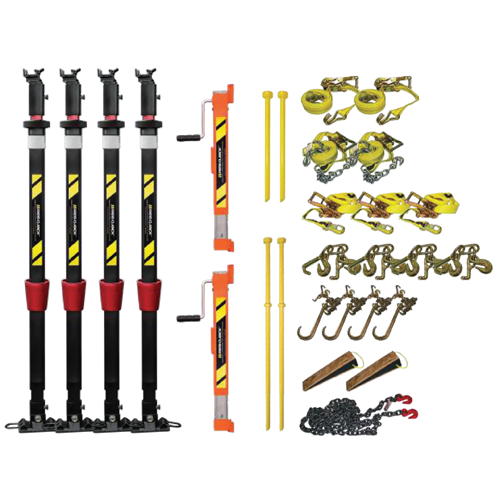

Kit contain:

(4) Super X-Struts (short or long)
(2) Super X-Strut Add-On Jacks
(2) Ratchet Straps w/ Wire Hooks
(2) Ratchet Straps w/ Chains
(3) Ratchet Straps w/ Snaps
(4) Clusters
(4) 4’ Chains w/ 8” J, Grabs, Mini-J & T-Hook
(1) Grade 80 Chain w/ Grab Hooks
(2) Wood/Plastic Hybrid Wedges
(2) 20” long 1” Stakes w/ Heads
(2) 4’ long 1” Pickets w/ Collars

PIN-FREE OPERATION

Threaded inner tubing makes setup and operation fast and smooth, while allowing for infinitesimal height adjustment when stabilizing or lifting and lowering loads.

QUICK & COMPATIBLE END FITTINGS

Change end fittings in an instant with the pull of a single retaining pin. Our 360° swiveling head comes standard for precise placement on any purchase point. End fittings are compatible with our Apex and Auto X-Strut fittings, as well as competitor head fittings, and accept up to 36” of extensions on both short and standard size struts.

AIR FITTINGS AVAILABLE

Call us to ask about having the Super X-Strut milled with our air fitting for use with pneumatic systems.

X-STRUT LIFTING POWER

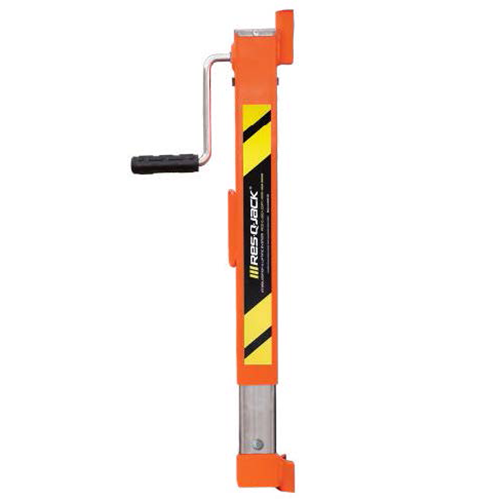

Transforms from a shoring strut to a lifting strut in seconds with our removable mechanical Add-On Jack, (pictured below) for 6,000lbs. (2:1) of ondemand lifting capability with 12 inches of resettable travel.
